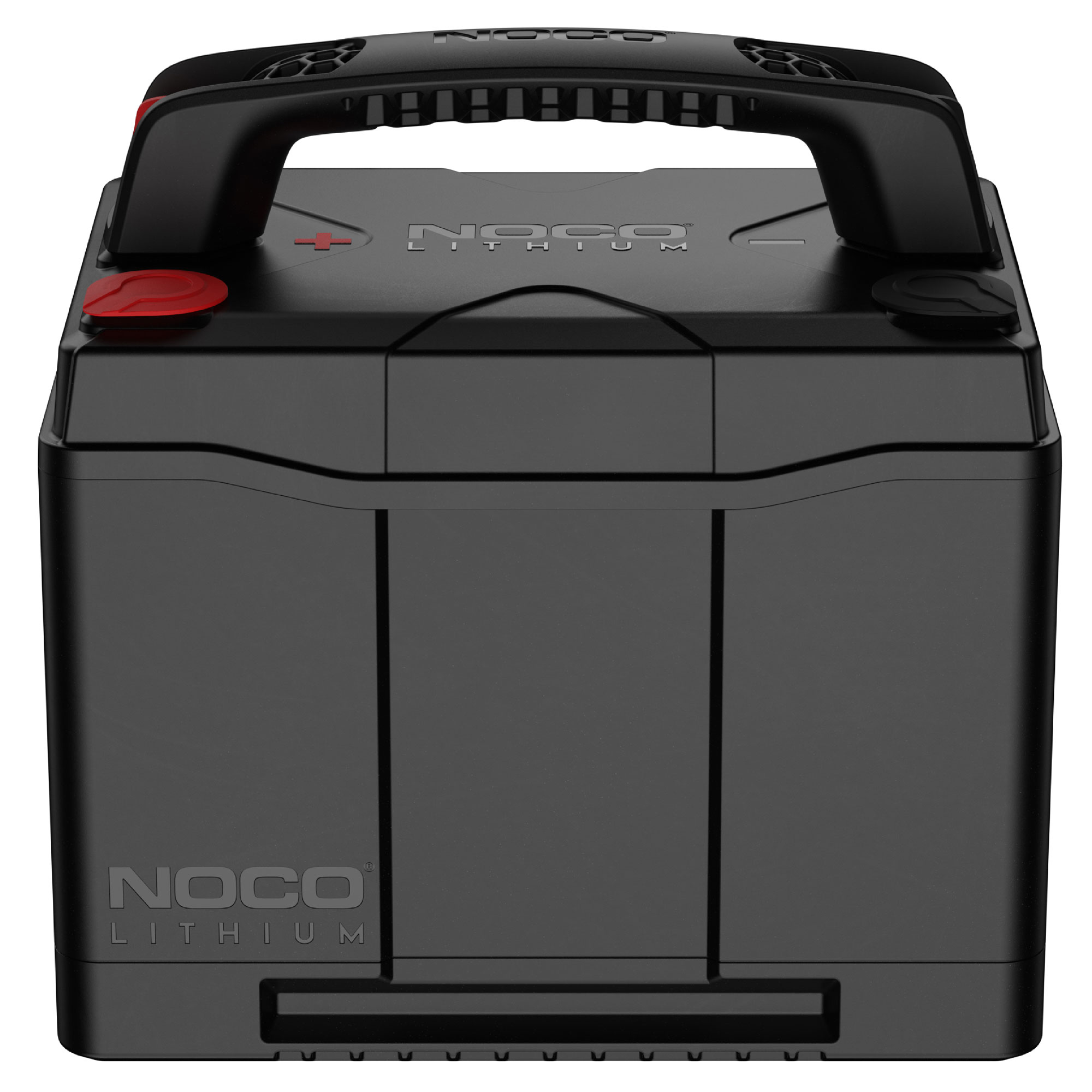

NLX24 LiFePO4 Dual-Purpose Battery GR 24 12.8V 90Ah 1200A Noco 1.66C

Group 24 Dual-Purpose Battery
Introducing the all-new NOCO Lithium NLX24 12V Lithium-Ion LiFePO4 Dual-Purpose Battery, a Group 24 battery, rated at 90Ah (1152Wh) with 1200-amps of starting power. It's better than lead-acid in almost every way. No sulfation, lighter in weight, higher starting power, and more usable capacity.

Dual-Purpose.
Deep-Cycle + Starter.
A dual-purpose lithium iron phosphate battery that combines the power of a starter battery with the cycle life of a deep-cycle battery. It's better than lead-acid in almost every way. No sulfation, lighter in weight, higher starting power, and more usable capacity for outrageous performance.

Superior Technology.
Better Than Lead Acid.
The NLX Dual-Purpose series is better than lead acid in almost every every way. No sulfation, lighter in weight, higher starting power, and more usable capacity.

2X More Power          10X More Starts          2X More Capacity          2X Longer Life

Power That Doesn't Fade.
Longer Battery Life.
It’s designed to take full advantage of its lithium technology to provide game‑changing battery life. It's rated at 2,000 cycles at 100% depth-of-discharge, 4,000 cycles at 80% depth-of-discharge, and 10,000 cycles at 50% depth-of-discharge, making it 20X longer battery life than lead-acid.

Rapid Recharge.
Full charge in minutes.
With incredible power and efficiency, the NLX Series takes charging to a whole new level and unleashes the power of lithium. Its ultra-fast technology provides blazing fast speeds - 1C - to allow a complete recharge within 1 hour - 90 amp charge current - and 20X faster than its lead-acid rivals.

Charger Model          Recharge Time

GENIUS10                9 hrs

GENIUSPRO25        3.6 hrs

GENIUSPRO50        1.8 hrs

High-Powered Reliability.
Deep-Cycle Performance.
Provides 90 amp-hours of pure battery storage capacity without any reduction in performance. Its advanced lithium technology maintains both power and voltage to fully utilize its rated capacity - 2X more capacity than lead-acid. And its unique modular design allows for up to 4x series and 4x parallel connections for uncompromising utility.

Up To 48V Connections

Up To 360Ah Systems

Active Protection.
Auto-Enabled Management System.
An advanced Battery Management System (BMS) provides maximum safety protection with bi-directional active cell balancing for long-lasting reliability. Protects from over-charge, over-discharge, over-current, short-circuit, and battery imbalance with continuous temperature monitoring. Plus, no BMS reset is needed.

Protects Against:

• Over-Charge
• Short-Circuit
• Over-Discharge
• Extreme-Heat
• Over-Current
• Extreme-Cold

Starting Power: 1200A Peak Amps.

4 In Parallel 4800A Max Amps.

Starting Performance.
One of the most powerful starting batteries ever designed. It delivers 1,200 amps of peak starting power - 2X more powerful than lead acid - with a maximum continuous discharge rate of 150 amps. Perfectly fits BCI Group 24 Standards for a simple replacement or upgrade of your starter battery.

Uncompromised Utility.
Expansive Power.
Used in series and parallel applications using the NOCO NLX Busbar (sold separately). Connect up to 4 batteries in either series or parallel arrangements.

Multiple Terminal Support.
Flexible Connections.
Each NLX battery offers multiple ways to connect. The terminals are mix and match with button head bolts, SAE terminal posts, threaded rods, and more.

Advanced Design.
NLX battery components are secured with an internal honeycomb lattice structure. The battery is protected with an engineered plastic shell.
