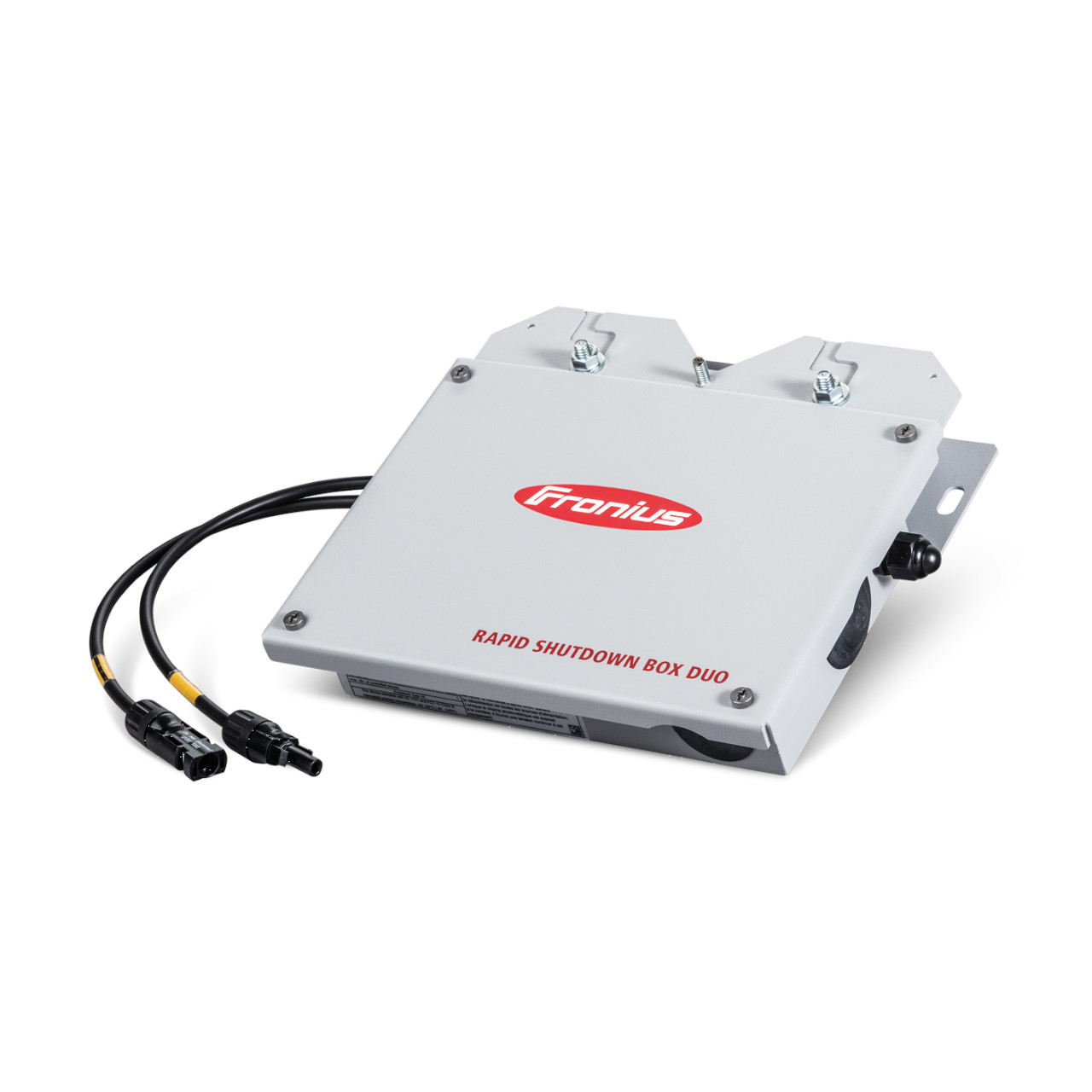

4240153 Fronius - Rapid Shutdown Box Duo

For CEC 64-218 Rapid Shutdown compliance on solar rooftop installations in Canada.
The easy installation of a Fronius Rapid Shutdown Box provides the ultimate solution for Fronius's Primo and some Symo (600Vdc limit) inverters.

The Fronius RSD box can accommodate up to two strings in parallel. Please use Staubli MC4 Y-Connectors to connect.

The Fronius Duo Rapid shutdown box has a very low DC startup voltage. This allows the RSD box to be used
even in Off-Grid system together with charge controllers to achieve RSD code compliance or even in conjunction with
other conventional string inverter brands.

The RSD box shutdown can be triggered by the integrated signal relay in Fronius Primo and Symo inverter product lines
or alternatively with a manual switch that interrupts the two-wire communication line.
