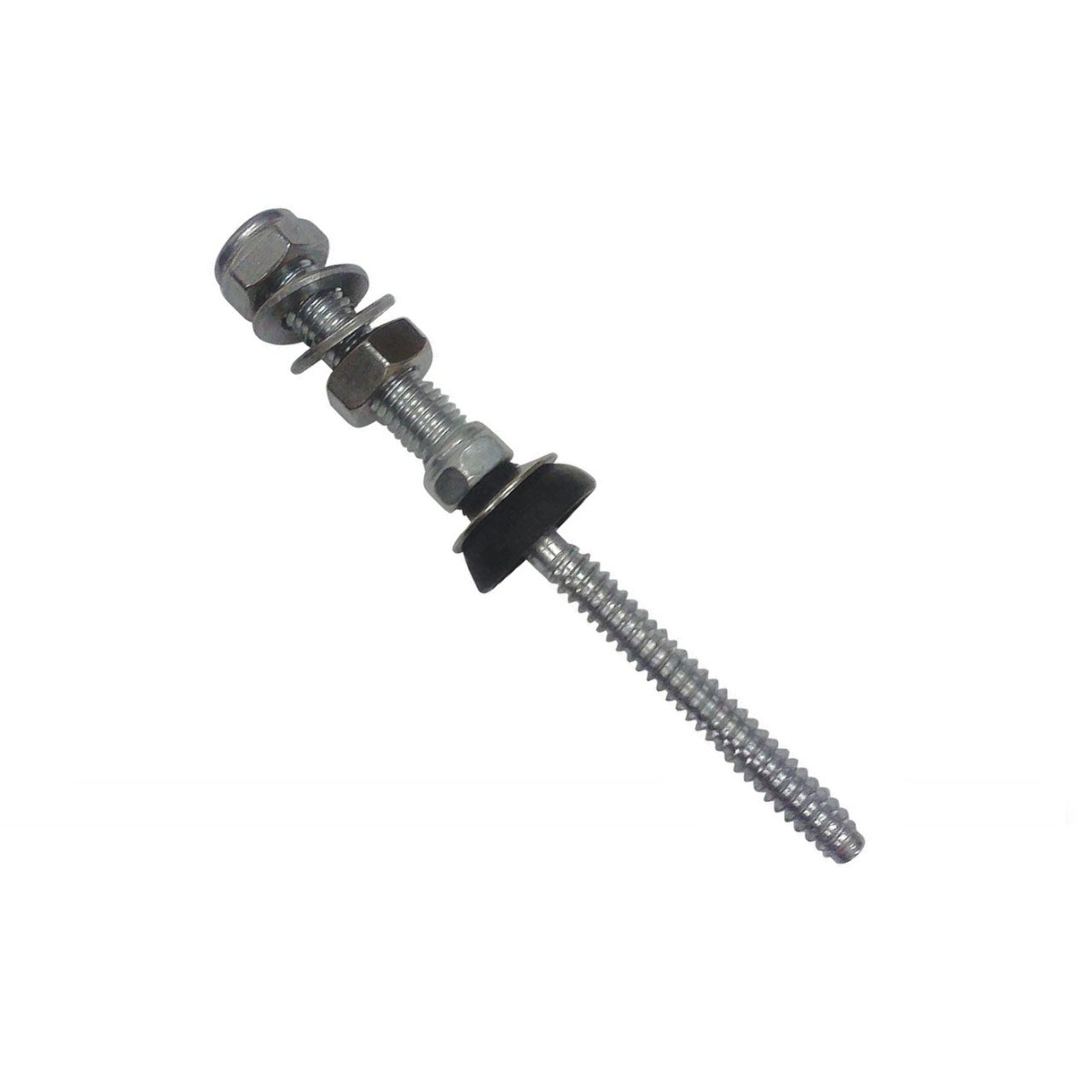

3130851905 EJOT JT3-SB-3-8.0X85/50 FZD Solar Fastener for Metal Roof and Substructure

Applications

• For fastening elevated solar and photovoltaic installations to steel substructures 1.5 - 3 mm
• Can also be used for steel substructure ≥ 3.0 mm if predrilled
• For high-strength steel substructures up to S450GD
• Suitable for corrugated fibre cement profile sheets

Properties

• A2 stainless steel with hardened steel drill point
• In set with FZD fibre cement seal

Benefits

• Quick retrofitting on existing installations
• Fastening without pre-drilling (substructure < 3 mm)
• Extremely safe fastening with direct load transfer into the substructure
• No additional holes in the roofing membrane
• Suitable for high-strength steels
• Consistent installation depth
• Use of proven sealing systems
• Durable seal due to solid attachment point
• Minimum installation and tool requirements
• Project-related initial sizing possible

Technical specifications

• Screw diameter: 8.0 mm
• A/F5 hexagon drive
• Installation rotation speed: max. 1300 1/min
