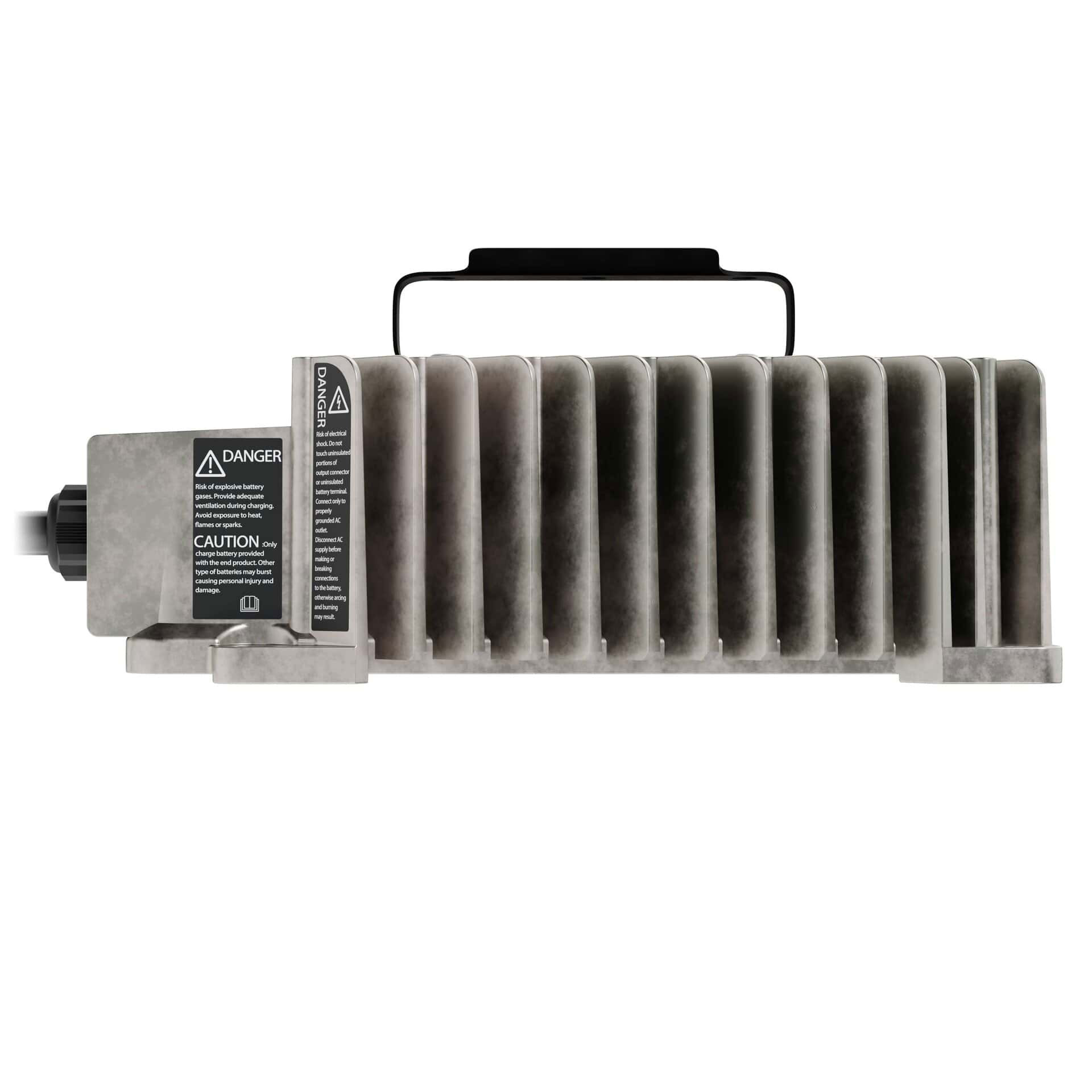

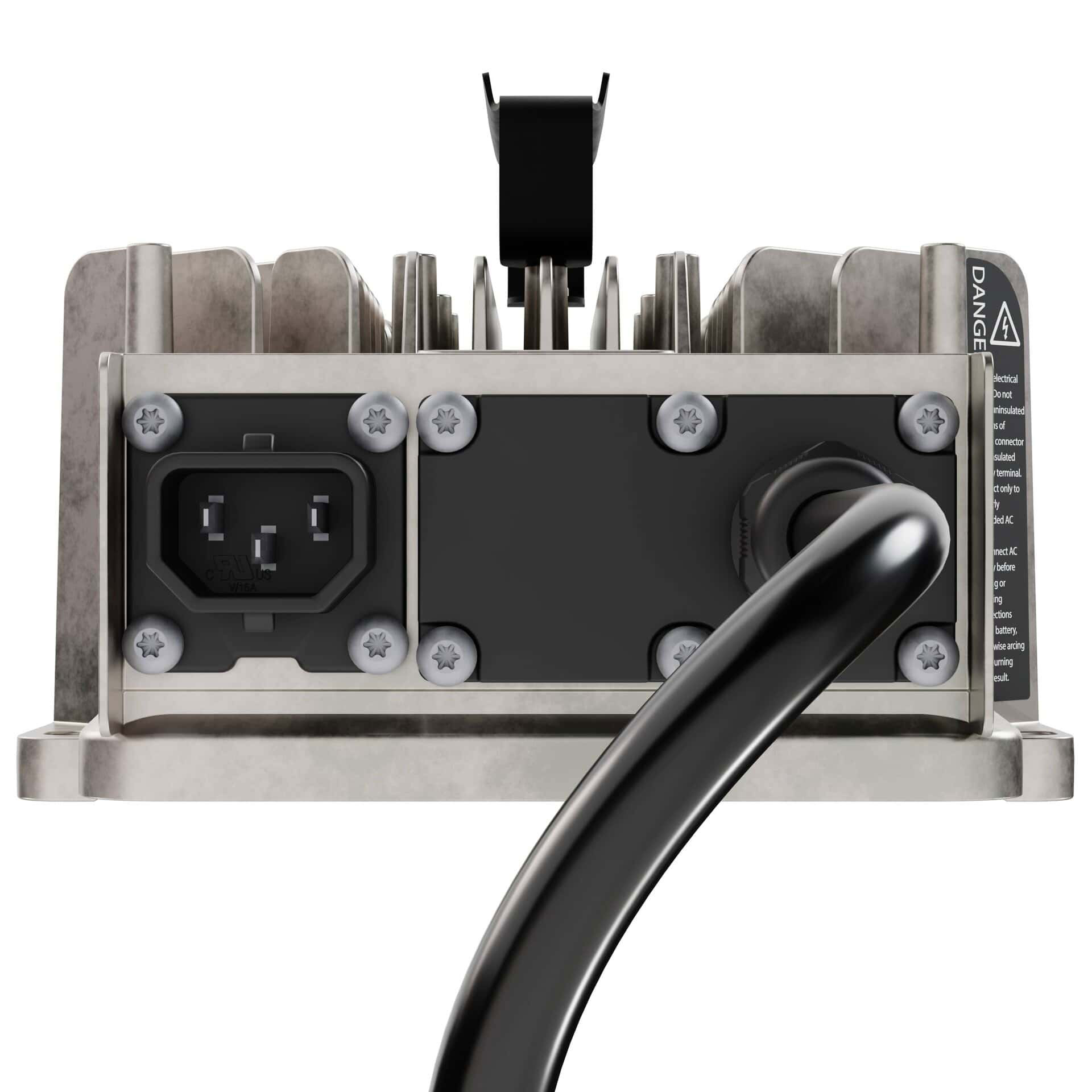

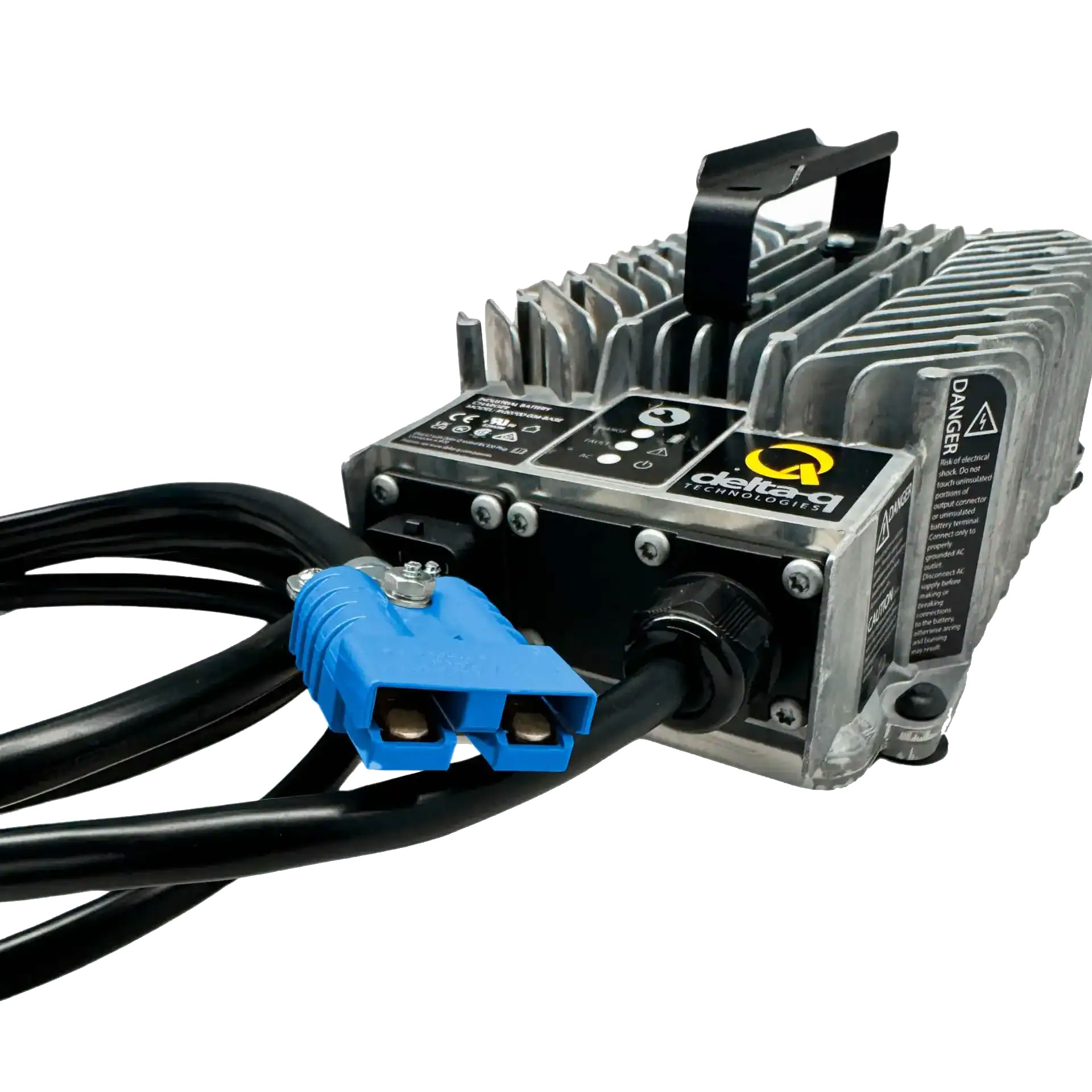

971-4800D Delta-Q RQ700 Series Industrial Battery Charger 48V 15A

Delta-Q Technologies RQ Series
700W Battery Charger for Lithium and Lead-Acid Battery Chemistries

The RQ Series are compact, rugged and highly efficient automotive grade battery chargers. Designed for worldwide installation, they can optimally charge 24, 36 and 48 volt lead-acid and lithium-ion batteries. CAN bus communication (CANopen and J1939 protocols) allows for a BMS to control charging, and for vehicle and telematics integration. Suitable for light electric on-road vehicles, outdoor power equipment, pallet trucks, and other industrial vehicles.

Features

High Reliability
IP67 rated to protect against water and dirt ingress. Designed to withstand automotive shock and vibration.

12V Auxiliary Output
RQ700 offers 12V-400mA of auxiliary power for the operation of small loads such as BMS wake-up and telematics.

Efficiency
Best in class power conversion efficiency compliant to latest CEC, DOE and NRCAN efficiency standards.

Global Standard Compliance
Compliance with North American, and European safety and EMC standards (FCC-B, EMC Directive - Class B, and UNECE R10*) and touch-safe voltage regulations allows for easy integration into electric vehicles

Enhanced Protection
Extensive protection features, such as short circuit, output over-voltage, and over-temperature protections, ensure reliable and safe operation.

CAN bus Communications
CANopen and J1939 protocols to interact with vehicle, telematics and lithium BMS. CAN bus can also update charger software, load charging profiles, and download charge tracking and diagnostic information.

OEM Features

• Wide AC input voltage (85-270V) for worldwide installation
• LEDs to indicate charging status, errors and faults.
• Push button to change to a different installed profile in the field
• Over-voltage AC grid connection protection to 420 VAC
• Safety interlock feature to prevent vehicle movement while charging
• Field programmable with up to 25 charge profiles
• Auto-recharge in maintenance mode
• Optional carrying handle for portability
