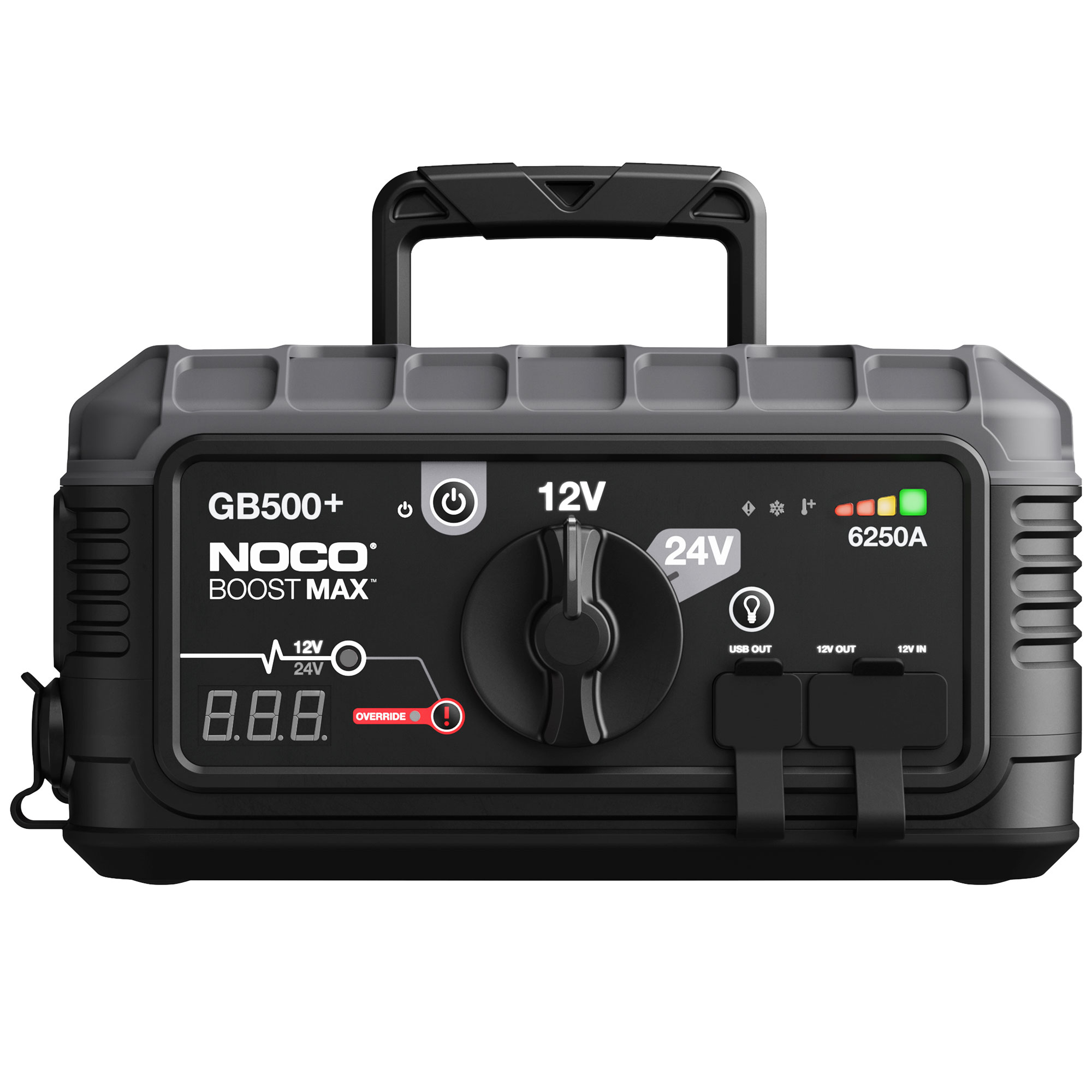

GB500 Boost Max™ 6250A

12V and 24V UltraSafe Lithium Jump Starter

The Boost Max™ is the next generation of portable lithium jump starters. Engineered from the ground up, the Boost Max™ is one of the most powerful and innovative jump starters on the market. Designed for both 12-volt and 24-volt gas and diesel engines in Class 8+/CE high-displacement vehicles and equipment, the Boost Max™ is 400% smaller and lighter than its closest lead-acid equivalent. It also features our patented safety protection for spark-proof technology and reverse polarity protection, as well as the confidence to power your favourite devices, from smartphones to tire pumps.

A compact yet powerful 12-volt and 24-volt lithium jump starter rated at 6250 amps, 80,000 joules3S (10,000 amps, 40,000 joules3S in the 24-volt).

A high-intensity 2,200-lumen LED work light with seven light modes, including SOS and Emergency Strobe.

Patented safety protection with spark-proof technology and reverse polarity protection that allows the jump starter to connect to any battery safely.

Dual USB ports to recharge multiple devices on the go, like smartphones, tablets and more—over 20 smartphone recharges.

Designed for 12 V and 24 V battery systems.

Quickly switch between 12 V and 24 V battery systems through a high-current,
industrial-grade battery switch.

A heavy-duty, industrial-grade battery switch mechanically switches between 12-volt and 24-volt battery systems. Its high-current design uses tin-plated pure copper conductors for maximum power transfer. And it provides both tactile and LED indicators to convey switch configuration.

Reimagined user interface.

Redesigned to be more user-friendly.

We redesigned our user interface to provide more useful information and improved readability in nighttime conditions. Now it features Cold and Hot LED indicators that illuminate when it’s reaching the upper and lower limits of its temperature range and LED-backlit technology to illuminate menus and buttons in low-light conditions.

Jump start 12V and 24V batteries.

Switchable 12V and 24V modes, designed for high-displacement engines, covering most applications.

Ultra-safe, compact, portable, lithium-ion jump starter for 24V and 12V battery systems. The GB500 is built for gas and diesel engines in Class 8+ and CE high-displacement vehicles, equipment, trucks, and more. Safe for all engine sizes.

8 times smaller, 16 times lighter.

The GB500 12 V and 24 V jump starter has 16 times more power but is one seventh the size.

When compared to its closest lead-acid equivalent, the GB500 provides over 80,000 joules3s versus 57,000 joules3s. Not only does it provide 30% more power, but it’s also 8 times smaller and 16 times lighter.

Joules, not peaks amps.

The GB500 12 V and 24 V jump starter has 80,000 joules of starting power.

Joules start vehicles, not peak amps. The average vehicle jump starts in 1–3 seconds, making peak amps somewhat unnecessary. However, actual power over time illustrates a battery booster’s real potential.

Multi-function jump starter.

The GB500 12 V and 24 V lithium-ion jump starter can be used for trucks and commercial, heavy-good and construction vehicles.

Not only designed for high-displacement vehicles and equipment, but it can also safely be used on any sized vehicle - from cars to boats, minivans to trucks, and SUVs to semi-trailer trucks. Plus, the confidence to power your 12 V and USB devices from anywhere.

Integrated voltmeter.

Digital battery voltmeter up to 30 volts.

The integrated voltmeter displays the battery voltage of the connected battery for enhanced diagnostics and troubleshooting. It’s not always the battery jump starters fault. There is a myriad of reasons why your vehicle won’t start, such as starter problems, worn-out battery cables and more. With a built-in digital battery voltmeter, you can quickly determine if a discharged battery is at fault or something else. If the battery voltmeter displays a good battery at 12.7–12.8 V (25.4–25.6 V for the 24 V), it is most likely another problem.


2,200-lumen high-intensity work light.

A super-bright rechargeable lithium-powered LED work light that provides scene lighting in low-light conditions. It features multiple light modes, including SOS and Emergency Strobe, plus variable luminosity settings. From inspecting tires to performing engine analysis, this high-intensity work light provides endless hours of operation.

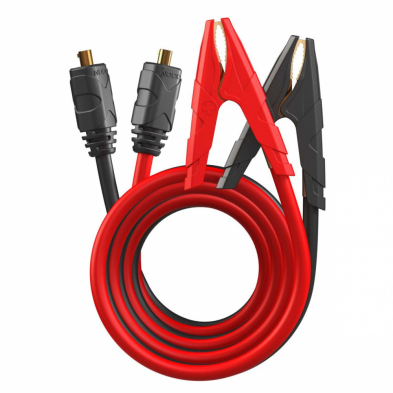

Boost Max™ connectors.

Heavy-duty power distribution.

Quickly connect and disconnect to the GB500 with the Boost Max™ 24-Inch 2/0 AWG cam-lock cable connectors. The Boost Max™ connectors will not slip or disconnect when the cables are pulled. Manufactured to be extremely durable, with an insulated and heat-stabilized 2/0 AWG silicone cable that maintains flexibility in cold weather environments.

Rapid charging technology.

Quickly recharge from an A/C or D/C power source.

With its next-generation lithium battery technology, the GB500 utilizes the latest advancements in rapid charge technology, allowing users to recharge faster and safer. Included are a 56-watt A/C power adapter and a 12-volt female adapter for in-car charging, which completely recharges its 266-watt-hour lithium-ion battery in less than eight hours.

Portable power.

Power your favourite 12 V devices and appliances.

It’s more than just a jump starter. It provides you the confidence of unlimited 12-volt portable power wherever you go. Power your favourite 12-volt devices and appliances, like a tire inflator, power inverter, cooler, coffee maker, GPS, fan and much more.

Power your USB devices on the go.

How many times will a GB500 recharge my device?

With two built-in 2.1 A USB ports, you can power multiple devices at the same time, such as smartphones, tablets, action cameras, wireless headphones, wearable technology and more. With over 266 watt-hours of lithium power, the GB500 can provide endless hours of operation and recharge your devices multiple times before needing a recharge.

Revolutionary design.

The smallest, lightest commercial jump starter in its class.

Power for power, this lithium jump starter outperforms its closest lead-acid equivalent at a fraction of the size and weight. At just under 20 pounds, this lightweight, compact jump starter is suitable for any job site, maintenance centre or just about everywhere else.

Technical Specifications
What’s in The Box
  • GB500 Lithium Battery Jump Starter
  • Boost Max™ 24-Inch 2/0 AWG Connectors

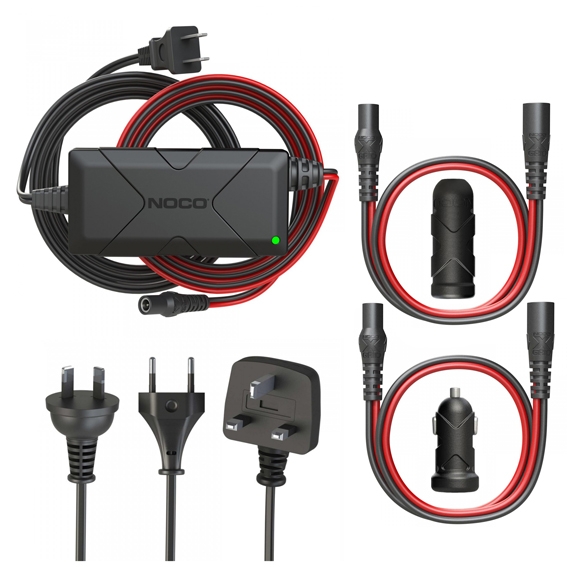

  • 56-Watt XGC Power Adapter
  • 12-Volt Female Plug
  • 12-Volt Male Plug
  • 12-Volt 2-Foot XGC Cable

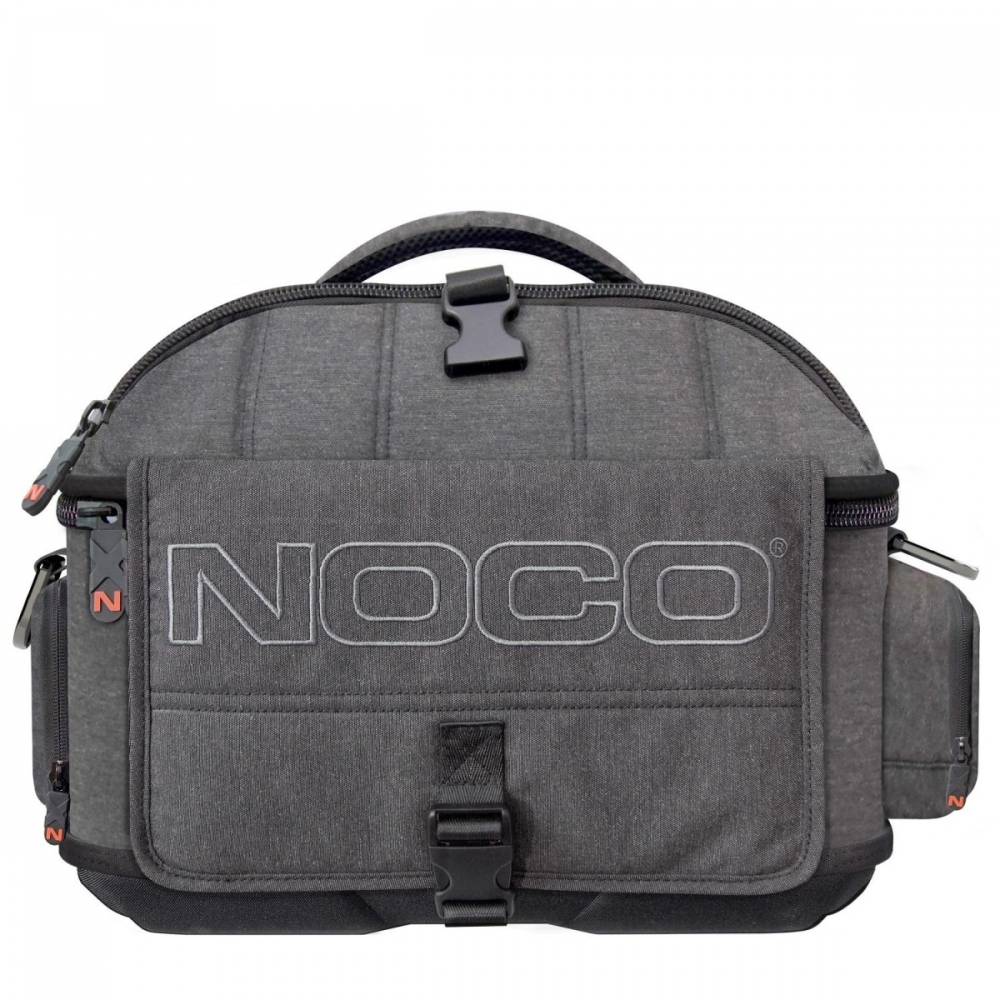

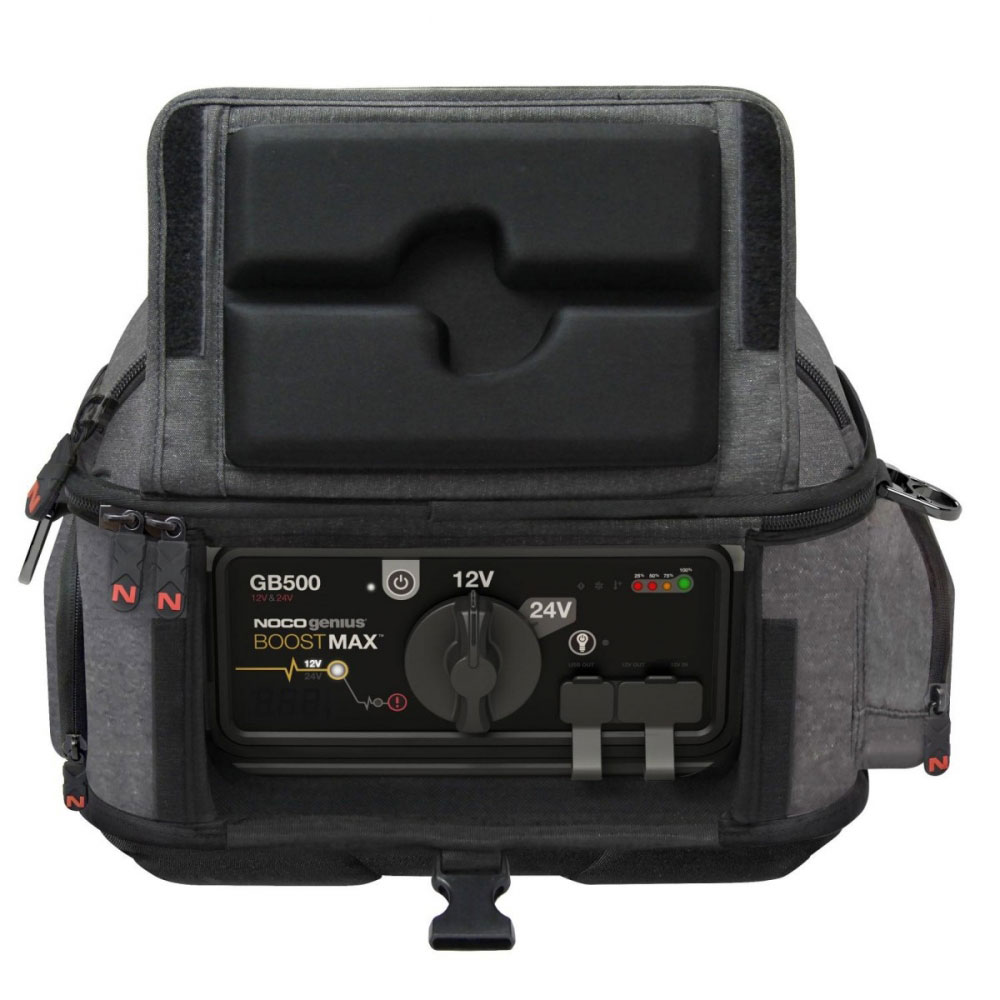

  • Protective Carrying Case
  • User Guide & Warranty Information
Starting Current

6250 Amps (Peak)

Joules 3S Rating

80,000+ joules3s


12V & 24V

Battery Types

12V & 24V Lead-Acid Battery Systems

Internal Battery

266 Watt-Hour Lithium-Ion

Operating Temperature

-30°C to +50°C

Charging Temperature

-30°C to +40°C

Storage Temperature

-20°C to +50°C

USB (Output)

Dual 5V, 2.1 Amps


Natural Convection

Dimensions (LxWxH)

12.3 x 8.2 x 6.3 in


19.25 lbs

12V XGC (Input)

12V @ 4 Amp

12V XGC (Output)

12V, @ 15 Amp

Gas Engine Rating

Up to Class 8+/CE Vehicles, Safe On All Engine Sizes

Diesel Engine Rating

Up to Class 8+/CE Vehicles, Safe On All Engine Sizes

LED Worklight




Ampères / Amps
Marque / Brand
Garantie / Warranty
12 mois
12 months
Hauteur / Height
6,4" / 162 mm
Largeur / Width
8,1" / 207 mm
Longueur / Length
12,2" / 311 mm
Numéro de pièce/modèle / Part/Model Number
Poids / Weight (kg)
