MNDC-GFP63 PROTECTION DEFAUT DE MISE À LA TERRE 63A 150VDC

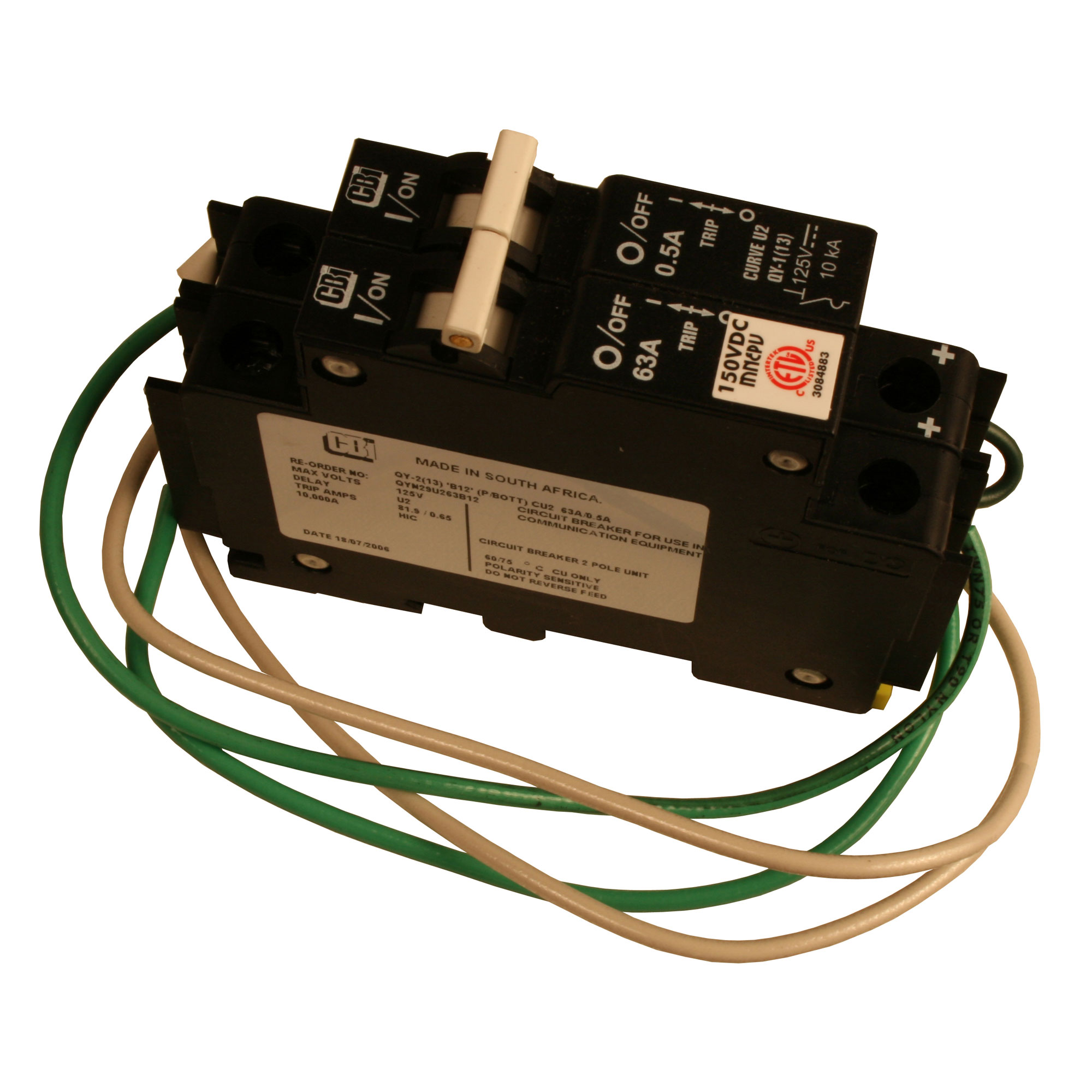

MNDC-GFP63 63A 150VDC DIN Rail Mount DC Ground Fault Protector

40-411-25344

Prix détail / Retail Price

CA $163.95

Statut d'inventaire / Inventory Status

Commande spéciale 2-3 semaines

Special Order 2-3 weeks

Qty:

Description

Description

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.

Breaker Torque Value: 20 In-Lbs (2.3NM)
POLARIZED
Width 1 inch (26mm)
Wire Size: 14 to 6 AWG
Environmental Rating - Type 1 (Indoor)
Listed for US & Canada when used in MidNite Solar enclosures

California Residents: Warning

Specifications

Specifications

Ampères / Amps

63

Marque / Brand

MidNite Solar

Hauteur / Height

3.7"/92.8mm

Garantie / Warranty

60 mois
60 months

Largeur / Width

1"/26mm

Numéro de pièce/modèle / Part/Model Number

MNDC-GFP63

Marques de certifications / Regulatory Certification Marks

UL 489A, CSA C22.2

Volts

150

Poids / Weight (kg)

0.4536
