MNDC-GFP80 PROTECTION DEFAUT DE MISE À LA TERRE 80A 150VDC

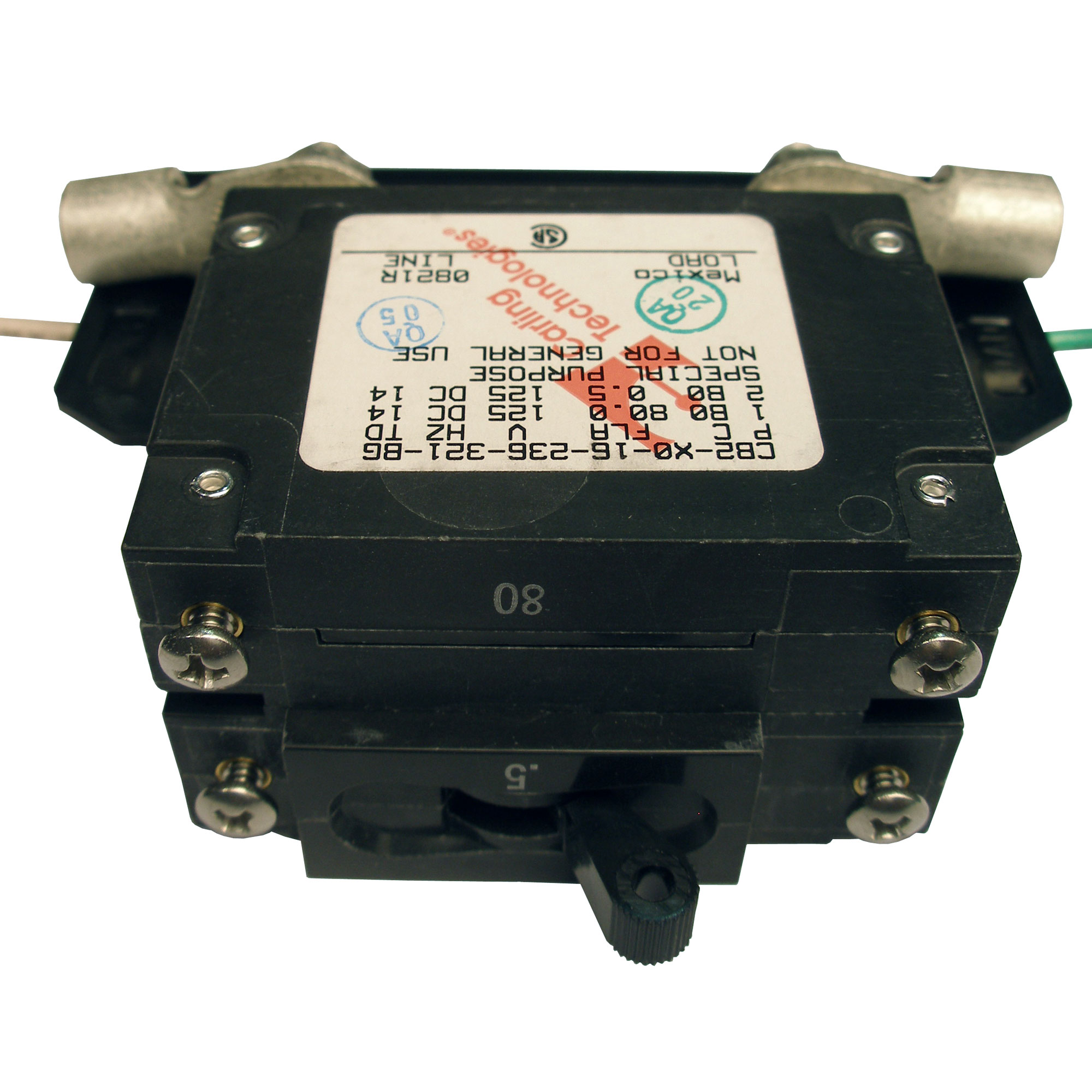

MNDC-GFP80 80A 150VDC Panel Mount DC Ground Fault Protector

40-411-25345

Prix détail / Retail Price

CA $163.95

Statut d'inventaire / Inventory Status

Commande spéciale 2-3 semaines

Special Order 2-3 weeks

Qty:

Description

Description

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.

Breaker Torque Value: 30 In-Lbs (3.4NM)

NON POLARIZED
Width 1.5 inches (39mm)
Environmental Rating - Type 1 (Indoor)
Listed for US & Canada

California Residents: Warning

Specifications

Specifications

Ampères / Amps

80

Marque / Brand

MidNite Solar

Hauteur / Height

2.5"/63.5mm

Garantie / Warranty

60 mois
60 months

Largeur / Width

1.5"/38.5mm

Numéro de pièce/modèle / Part/Model Number

MNDC-GFP80

Marques de certifications / Regulatory Certification Marks

UL 489A, CSA C22.2

Volts

150

Poids / Weight (kg)

0.4536
