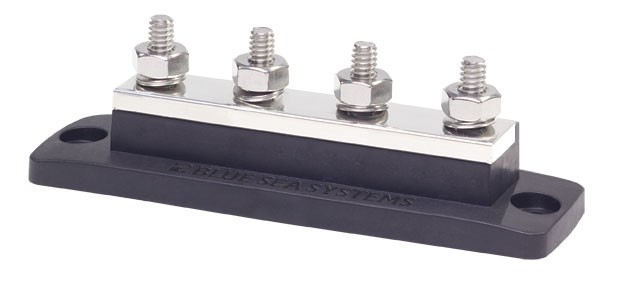

BS2127 MaxiBus 250A BusBar - Four 5/16"-18 Studs

BS2127 Maxibus 4 x 5/16 stud common

The BS2127 Maxibus allows you to connect multiple wires or power multiple circuits. The 4 stainless steel stud terminals eliminate the use of nuts and lets you torque tightly for excellent electrical contact. The bus being raised as it provides an easy access to numerous wires on a single stud.

Practical and safe!

UL94-V0 rated base material will resist high heat. The raised mounting holes protect from accidental shorts to aluminum and steel mounting surfaces even under heavy weather on the sea.

Specifications

• Maximum Voltage                                 300V AC
                                                                  48V DC
• Number of Terminal Studs                  4
• Terminal Type                                       5/16"-18 Stud
• Continuous Rating                                250A
• Base Material                                        UL 94-V0
• Bus Material                                          Tin-Plated Copper CDA 110 - UNS 11000
• Recommended Torque                         132 in-lb (14.91 N·m)
• Weight                                                    0.80lb (0.36 kg)

Offers security for multiple connections!
