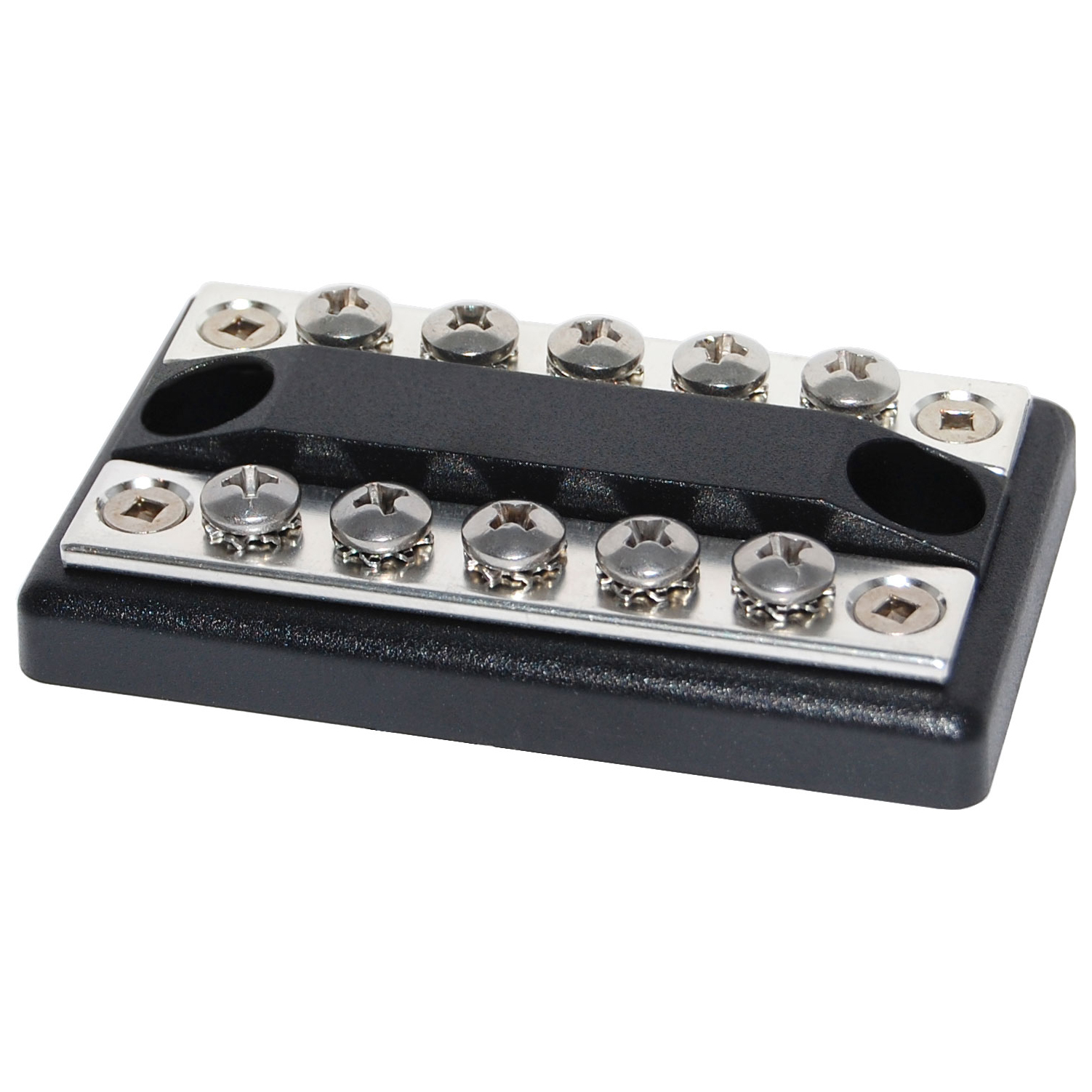

BS2701 DualBus 100A BusBar - 5 Circuit

BS2701 DualBus com +/-5 circuit

The BS2701 DualBus combines negative and positive buses for DC Systems and neutral ground buses for AC Systems.

Combines two buses on one block!

Specification

• Maximum voltage                          300V AC
                                                         48V DC
• Number of screw terminals           5per bus
• Terminal type                                8-32 screw
• Continuous rating                          100A
• Base material                                 ABS
• Bus material                                   Tin-plated copper CDA 110/UNS 11000
• Height                                            5/8`` in (15.88mm)
• Weight                                            0.21lb (0.1kg)

Space conscious and efficient!
