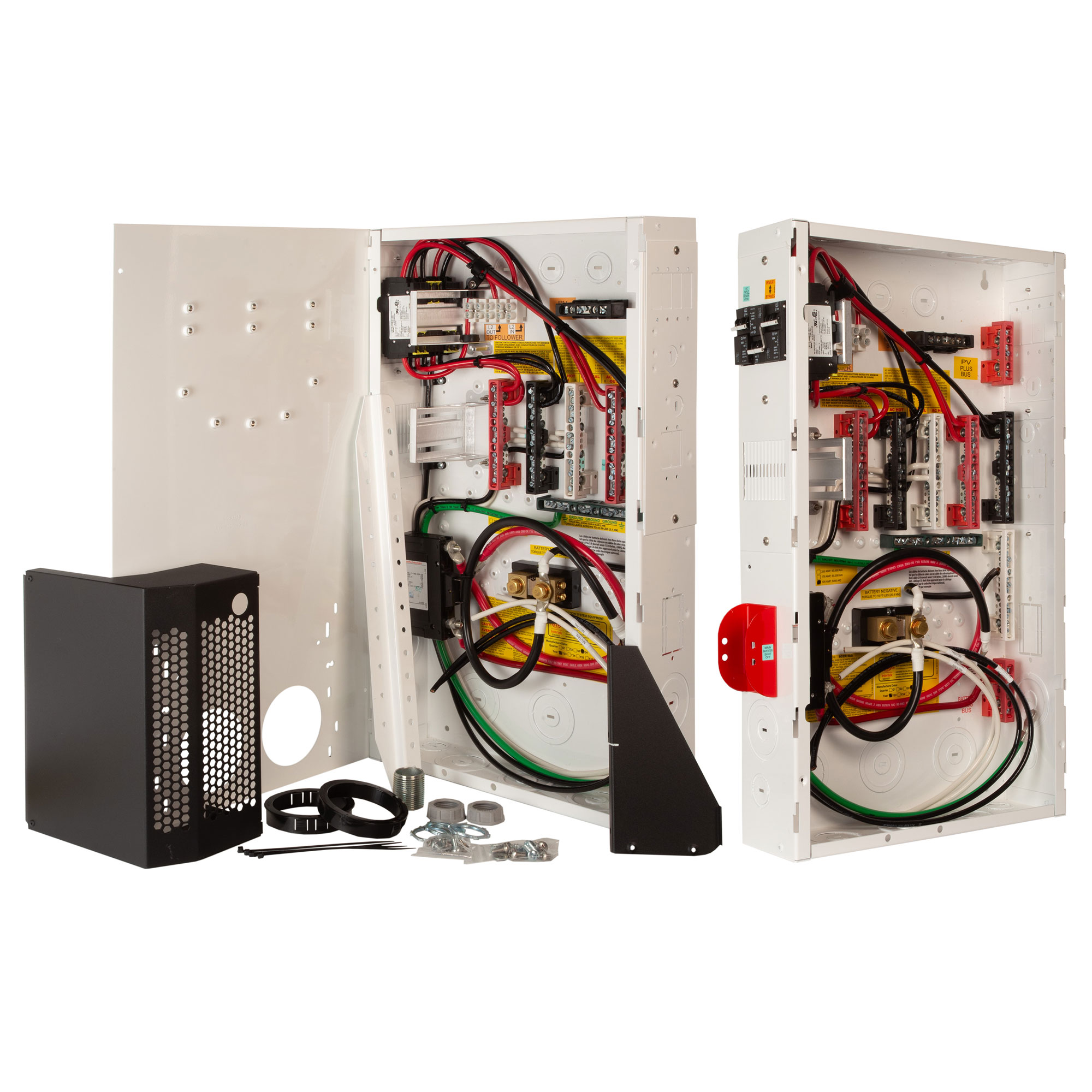

MNE125STMPII3KUL-P E-Panel for MultiPlus-II 3kVA 48V (Primary)

The MNE125STMPII3KUL-P and MNE125STMPII3KUL-F E-Panels were specifically designed for Victron Energy’s 3kVA/48 VDC Multi-Plus II (UL) inverter/charger. These E-Panels provide the additional components necessary to create a code compliant system - in a compact, affordable and professional panel for mounting a single inverter or for Series-Stacking* two 120V AC inverters.

The E-Panel designed by MidNite Solar is the standard in off-grid systems - offered by professional Solar installers. The MNE125STMPII3KUL-P (Primary) provides the safety disconnects and connections for Leg 1 of a Series-Stacked inverter pair, and also includes the inverter system bypass. The MNE125STMPII3KUL-F (Follower) provides the safety disconnects and connections for Leg 2 of the Series-Stacked inverters pair.

An essential part of every Renewable Energy system is the over-current disconnects. The MidNite E-Panel uses custom manufactured RE circuit breakers to ensure systems have the proper protection for the many different AC and DC circuits involved. These E-Panels integrate high voltage PV input, charge controller outputs, inverter over-current protection, DC load circuits, AC input disconnect, AC input/output bypass, AC load circuits, DC-GFP circuit and wind turbine/hydro input circuits.

FEATURES

• Pre-wired to save time, money and complexity.
• All field wiring connections clearly labeled.
• A built-in AC bypass switch with full inverter current capability, and a DC disconnect breaker for safe and easy isolation for servicing of the inverter and/or battery bank.
• Battery to inverter/charger DC disconnect breaker (125 Amps).
• Inverter AC input over current protection breakers.
• DIN mount AC and DC breakers for quick and easy operation.
• A 500A/50mV DC shunt installed for easy connection to battery status monitor.
• Enclosure and components are UL/CSA certified and designated for indoor use.
• Configurations available for both single 120V and 120/240V AC systems.
• DC negative, positive and ground busbars for DC loads and PV arrays included.
• Mounting provided for DIN rail DC load/disconnect breakers.
• White powder-coated steel enclosure.
• Mounting hardware for inverter and charge controller.
• Mounting brackets for hanging E-panel on wall.
• Knockouts for inverter/charger and battery cables, PV in/out, DC panel mount breakers.
• Integrates directly with Victron Energy’s 3kVA/48V DC Multi-Plus II (UL) inverter/charger.
