CH-PAT-2KWHJ-12 Complete "Ready for Anything" 12V Cottage Kit for 2000Wh/d Energy Usage

30-301-20098

Prix détail / Retail Price
CA $11607.66
Statut d'inventaire / Inventory Status
Article inventorié / Stocked Item

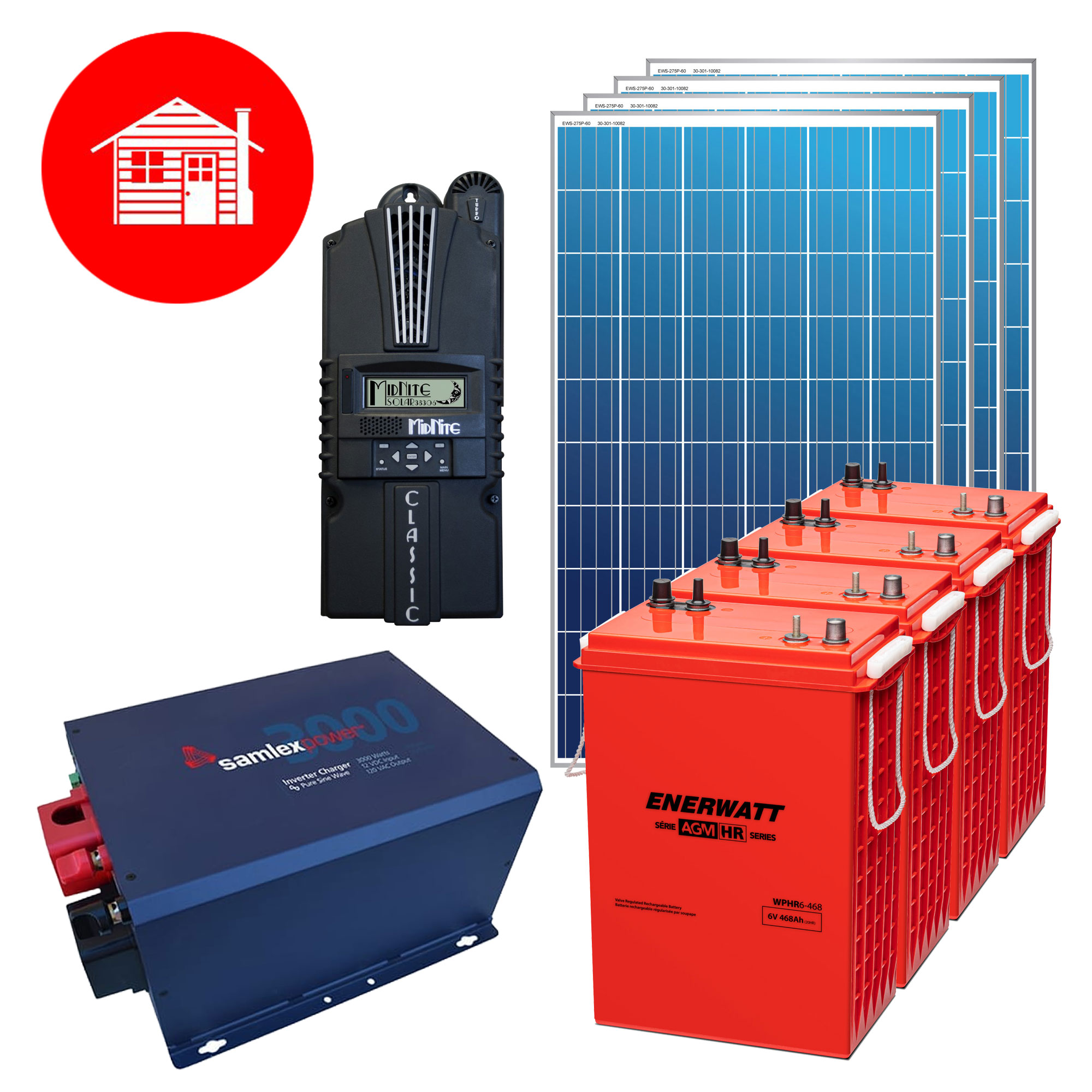

This kit contains: Quantity:
EWS-275P-60 Polycrystalline Solar Panel 275W 3030110082 4
UNI-GR/02 Ground/Roof PV mount 45" 3030190054 4
KIT-CLASSIC150-SL-CH MPPT controller and hardware kit for Classic150-SL 3030125015 1
WPHR6-468 High Rate AGM Battery Gr L16 6V 468Ah 1012115149 4
QC7625-001N Jumper Cable 2 Lugs 2/0 AWG 8.5" Black (1) 4040115016 4
EVO-3012 Samlex EVO 3000W Pure Sine Wave Inverter/Charger 12Vdc to 120Vac with 130A Charger 3031110128 1
EVO-RC-PLUS Remote Control for Samlex EVO Series Inverter/Chargers with 33' Cable (4-line Display) 3031190104 1
KIT-4-0AWG-400A Preassembled 4/0 AWG 5' Cable and 400A ANL Fuse Inverter Cable Kit 3030125011 1

Description

Description

- This 12V kit can supply an average daily consumption of 2000Wh, with a reserve of 5600Wh at 50% discharge, 12 months a year.
- It can power 12V and 120V appliances up to 3000W.
- For 24V appliances, the addition of a DC-DC converter is optional.
- The inverter/charger enables the system to serve as an automatic emergency power supply in the event of a power failure. It can also be used to add a generator to recharge the batteries if necessary, all without interruption.
- The MPPT controller ensures maximum efficiency in solar energy harvesting.
- AGM (sealed) batteries are maintenance-free, requiring only that they be kept as fully charged as possible. They can emit hydrogen during charging and discharging, so external ventilation is recommended.

Specifications

Specifications

Marque / Brand
Enerwatt
Garantie / Warranty
Garantie selon composantes
Component warranty applies
Numéro de pièce/modèle / Part/Model Number
CH-PAT-2KWHJ-12
Poids / Weight (kg)
0.0000
