CH-PAT-2KWHJ-24 Complete "Ready for Anything" 24V Cottage Kit for 2000Wh/d Energy Usage

30-301-20101

Prix détail / Retail Price
CA $11214.6
Statut d'inventaire / Inventory Status
Article inventorié / Stocked Item

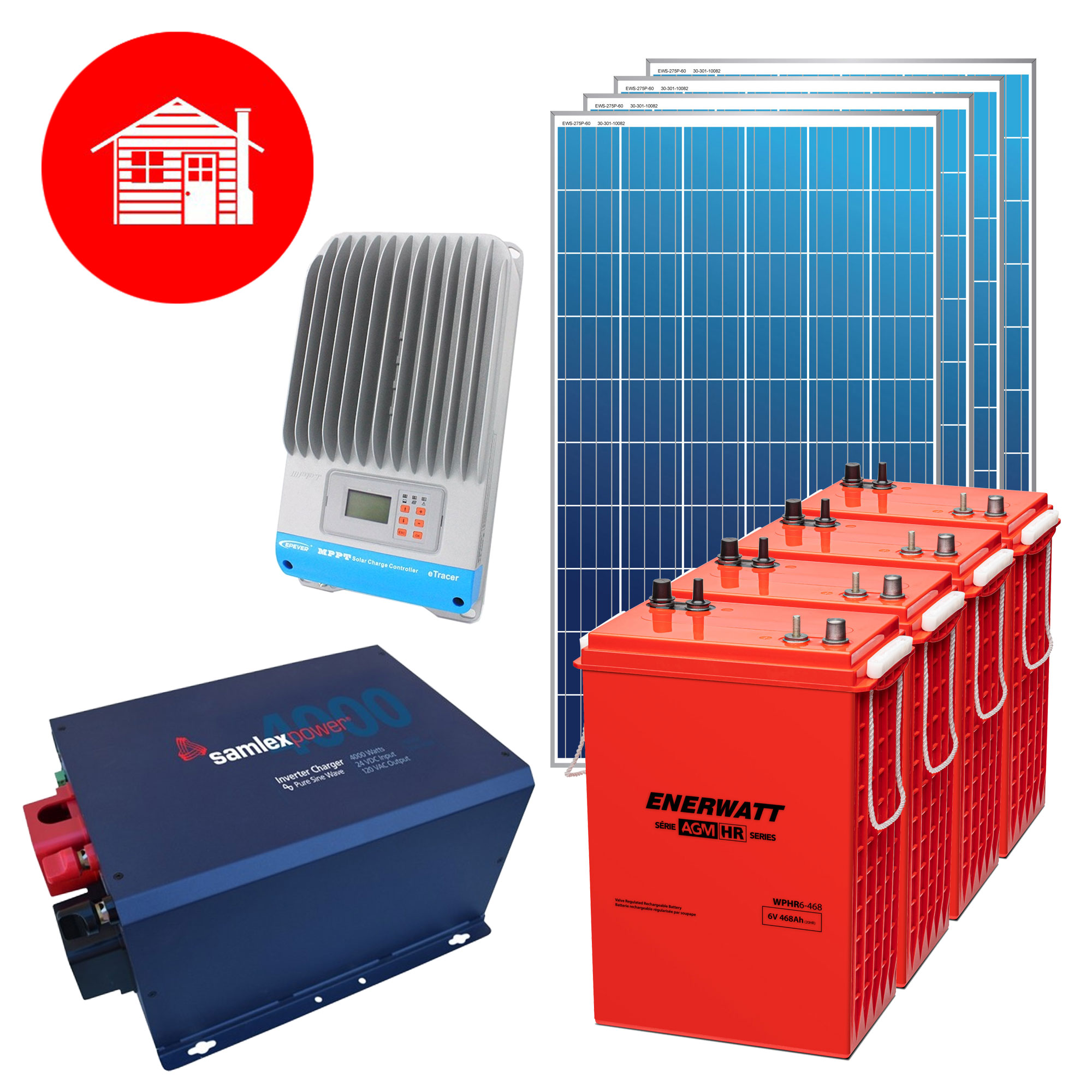

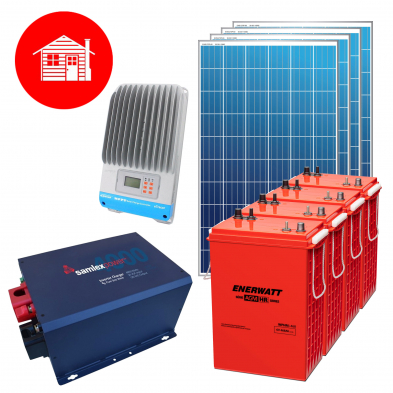

This kit contains: Quantity:
EWS-275P-60 Polycrystalline Solar Panel 275W 3030110082 4
UNI-GR/02 Ground/Roof PV mount 45" 3030190054 4
KIT-6415ND-CH MPPT controller and hardware kit for IT6415ND 3030125013 1
WPHR6-468 High Rate AGM Battery Gr L16 6V 468Ah 1012115149 4
JP-4-0AWG-BK12 Jumper Cable 2 Lugs 4/0 AWG 12" Black 4040115036 4
EVO-4024 Samlex EVO 4000W Pure Sine Wave Inverter/Charger 24Vdc to 120Vac with 110A Charger 3031110129 1
EVO-RC-PLUS Remote Control for Samlex EVO Series Inverter/Chargers with 33' Cable (4-line Display) 3031190104 1
KIT-3-0AWG-350A Preassembled 3/0 AWG 5' Cable and 350A ANL Fuse Inverter Cable Kit 3030125010 1
SDC-12 DC-DC Step Down Converter 20-32V to 13.8V 12A Non-Isolated 3031510013 1

Description

Description

- This 24V kit can supply an average daily consumption of 2000Wh, with a reserve of 5600Wh at 50% discharge, 12 months a year.
- It can power 12V, 24V and 120V appliances up to 4000W.
- The inverter/charger enables the system to serve as an automatic emergency power supply in the event of a power failure. It can also be used to add a generator to recharge the batteries when needed, all without interruption.
- The MPPT controller ensures maximum efficiency in solar energy harvesting.
- AGM (sealed) batteries are maintenance-free, requiring only that they be kept as fully charged as possible. They can emit hydrogen during charging and discharging, so external ventilation is recommended.

Specifications

Specifications

Marque / Brand
Enerwatt
Garantie / Warranty
Garantie selon composantes
Component warranty applies
Numéro de pièce/modèle / Part/Model Number
CH-PAT-2KWHJ-24
Poids / Weight (kg)
0.0000
