CH-ECO-3KWHJ-24 Complete "Economical" 24V Cottage Kit for 3000Wh/d Energy Usage

30-301-20105

Prix détail / Retail Price
CA $11960.95
Statut d'inventaire / Inventory Status
Article inventorié / Stocked Item

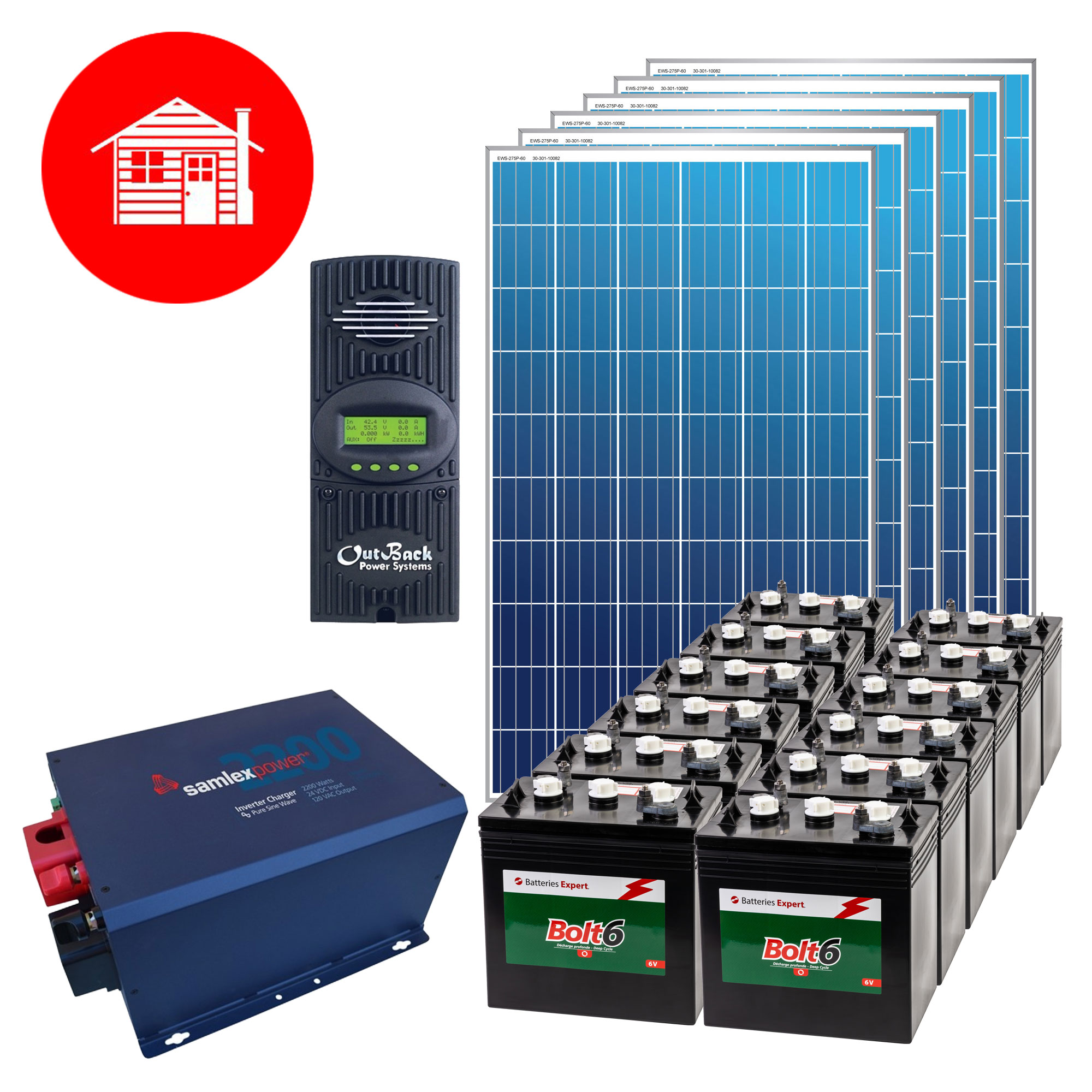

This kit contains: Quantity:
EWS-275P-60 Polycrystalline Solar Panel 275W 3030110082 6
UNI-GR/02 Ground/Roof PV mount 45" 3030190054 6
KIT-FM80-CH MPPT controller and hardware kit for FM80 3030125016 1
GC2-BOLT6-210 Deep Cycle Battery Gr GC2 6V 210Ah 1011115129B 12
QC7515-001 Switch to Starter Cable 1 AWG 15" Black (1) 4040115014 13
EVO-2224 Samlex EVO 2200W Pure Sine Wave Inverter/Charger 24Vdc to 120Vac with 70A Charger 3031110127 1
EVO-RC-PLUS Remote Control for Samlex EVO Series Inverter/Chargers with 33' Cable (4-line Display) 3031190104 1
KIT-2AWG-175A Preassembled 2 AWG 5' Cable and 175A ANL Fuse Inverter Cable Kit 3030125009 1
SDC-12 DC-DC Step Down Converter 20-32V to 13.8V 12A Non-Isolated 3031510013 1

Description

Description

- This 24V kit can supply an average daily consumption of 3000Wh, with a reserve of 7500Wh at 50% discharge, 12 months a year.
- It can power 12V, 24V and 120V appliances up to 2200W.
- The inverter/charger enables the system to serve as an automatic emergency power supply in the event of a power failure. It can also be used to add a generator to recharge the batteries if necessary, all without interruption.
- The MPPT controller ensures the most efficient harvesting of solar energy.
- Flooded batteries require regular maintenance to ensure optimum service life. They also need to be vented to the outside to evacuate the hydrogen emitted during charging and discharging.



Specifications

Specifications

Marque / Brand
Enerwatt
Garantie / Warranty
Garantie selon composantes
Component warranty applies
Numéro de pièce/modèle / Part/Model Number
CH-ECO-3KWHJ-24
Poids / Weight (kg)
0.0000
