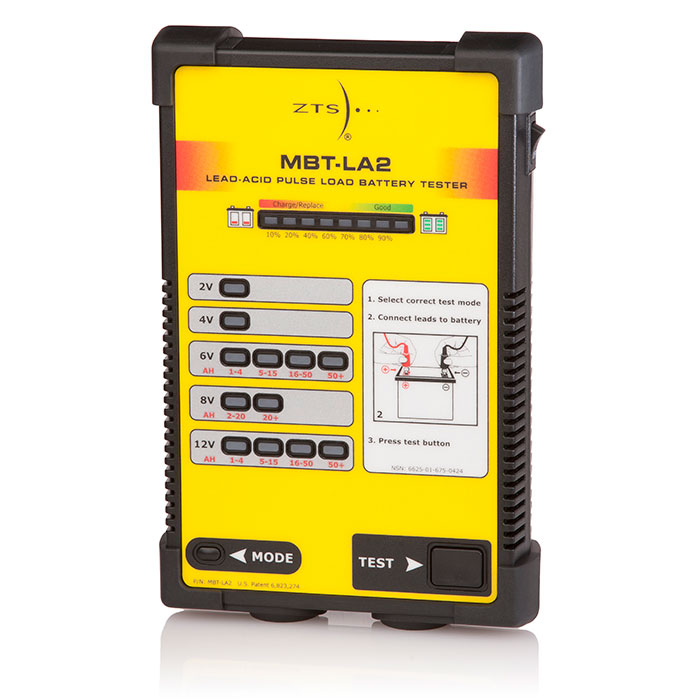

MBT-LA2 Lead Acid Multi-Battery Tester





The ZTS Lead Acid Multi-Battery Tester (MBT-LA2) provides a comprehensive means of testing the state of charge and battery condition for 2-volt, 4-volt, 6-volt, 8-volt, and 12-volt lead acid battery types (SLA, AGM, Gel, Wet). Lightweight, compact design make it an ideal tool for anyone working with lead acid batteries. This microprocessor-controlled instrument tests popular batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Test results are easy to understand. An integrated cooling fan dissipates heat from testing, and the circuit is protected against over-voltage. Rugged NBR rubber sleeve protects against impact. includes 48" removeable test leads with solid copper clamps. The tester is packaged with the accessory kit (K-MBTLA2), which includes a hanging strap and a protective soft case. Requires 4AA batteries (not included).









P/N: MBT-LA2

Testing capability (modes):

Power (internal): 4 x AA batteries

Display: 8 LEDs - colors green, yellow, red

Pulse Load: magnitude varies according to battery type

Auto shut-off: after 20 minutes w/o test activity

Test duration: approx. 15 seconds

Test leads: 48" rubber coated high strand count, solid copper clamps, R/A sheathed banana plugs

Dimensions: 9.25 x 6.25 x 2.00 inches

Weight: approx. 32 oz. (908g)

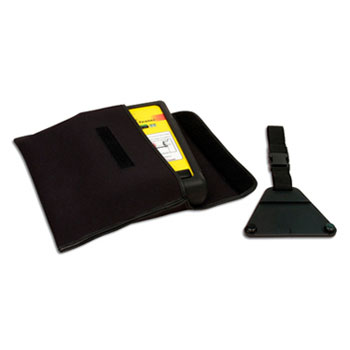

This accessory kit includes a protective soft case and suspension crown/hanging strap. The soft case has a secure Velcro® flap and protects against dirt and impact. The hanging strap has a quick release buckle for easy fastening to conduit, pipes, ladder rung, etc. Note: This kit is included with the MBT-LA2.
